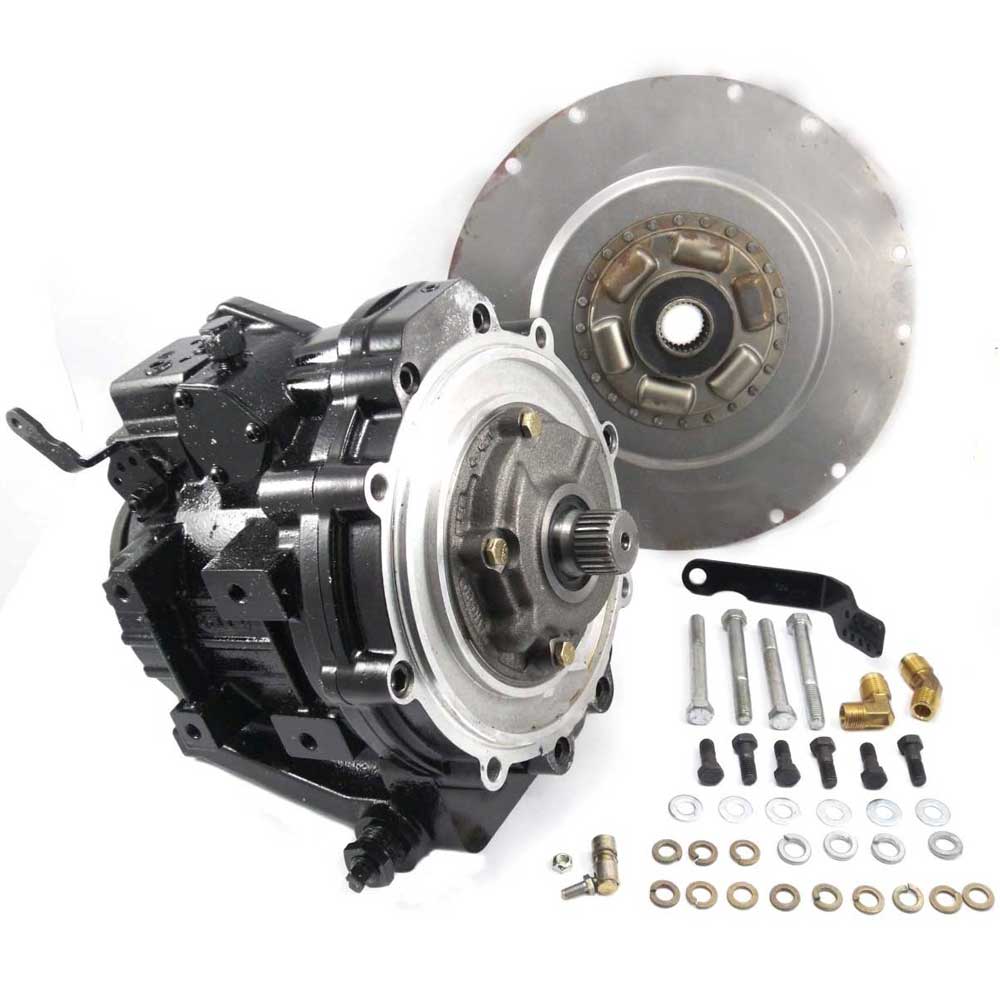

Transmission update kit to replace PCM 40I model 1:1 ratio with 80I model on CHEVY GM engines and includes all necessary parts for the conversion.
- Made by Velvet Drive®
- Conversion kit for updating the PCM 40I transmission to the PCM 80I model for GM engines
- Kit includes 80I transmission RA157026
- The transmission is 1:1 ratio direct drive and has a 4 inch diameter 4 bolt output coupler
- Kit also includes a new damper drive plate, transmission cooler and hoses along with all necessary attaching hardware
- Transmission is also used with the direct couple Walter V-Drive model RV-26D
- No dimensional changes take place with the update
- The original propshaft, coupler and transmission mounts can be reused
- Replaces RA157016 transmission model 40I
This is a PCM 80I 1:1 ratio transmission.
It will replace the PCM 40I 1:1 ratio Direct Drive or Walter V-Drive.
This kit includes the GM 5.0L and the 5.7L damper plate, shift cable bracket, bolts transmission cooler lines, fittings
Also includes a new 12 inch cooler.
This kit is designed for heavy weighted boats.
NOTE: This kit only works with LEFT HAND rotation engines.
ONLY works where an IRM40 gear was with a Chevy and does NOT work with a PCM V-drive.
Left Hand (standard rotation) Engines ONLY.
THIS KIT IS NON-RETURNABLE UNLESS DEFECTIVE!
