PTC SENSOR POTENTIOMETER
5.7L & 6.0L DBW

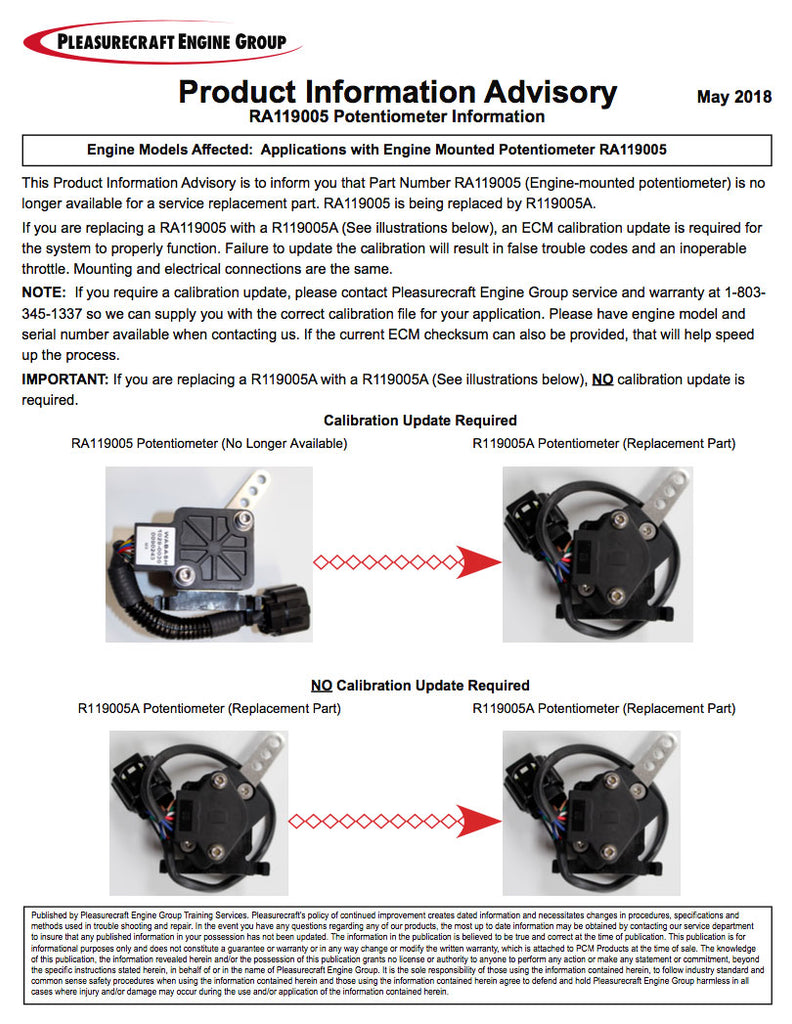

2007 AND UP - SEE PICTURE FOR ADVISORY:
- Replaces Crusader RA119005
- If you order the RA119005, PLEASE NOTE THAT It Requires a new ECM calibration in order to function correctly!
- If you are replacing the R119005 with an R119005, this one, then you DO NOT need to calibrate or re-flash! See picture below.
If you are replacing a RA119005 with an R119005A (See illustrations below), an ECM calibration update is required for the system to properly function. Failure to update the calibration will result in false trouble codes and an inoperable throttle. Mounting and electrical connections are the same.
POTENTIOMETER (Throttle Control Position sensor) for 2007-201x model GM boats that are Drive By Wire
This item has changed and now requires that the engine’s ECM be re-programed to operate for older models.
This Requires that the boat is carried to a PCM dealer to load the new configuration files, OR THE ECM CAN BE SENT IN TO BE RE-FLASHED.

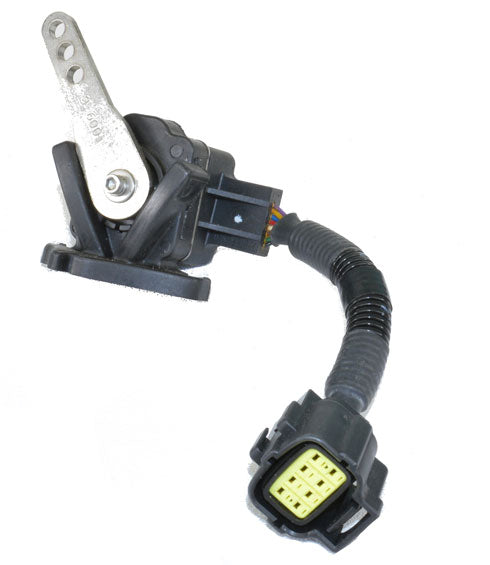

If your unit looks like the picture that states older style- your ECM needs updating.

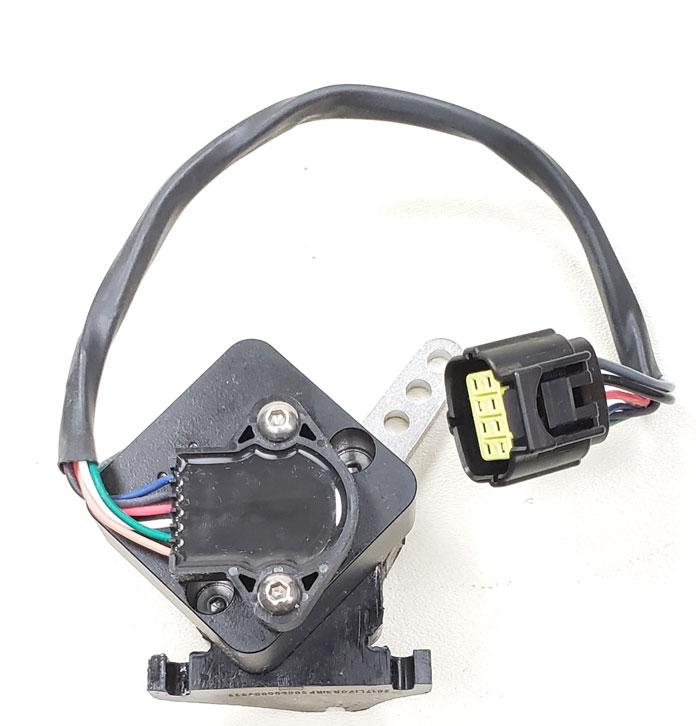

If your unit looks like the picture that states newer style- you can install plug and play.
