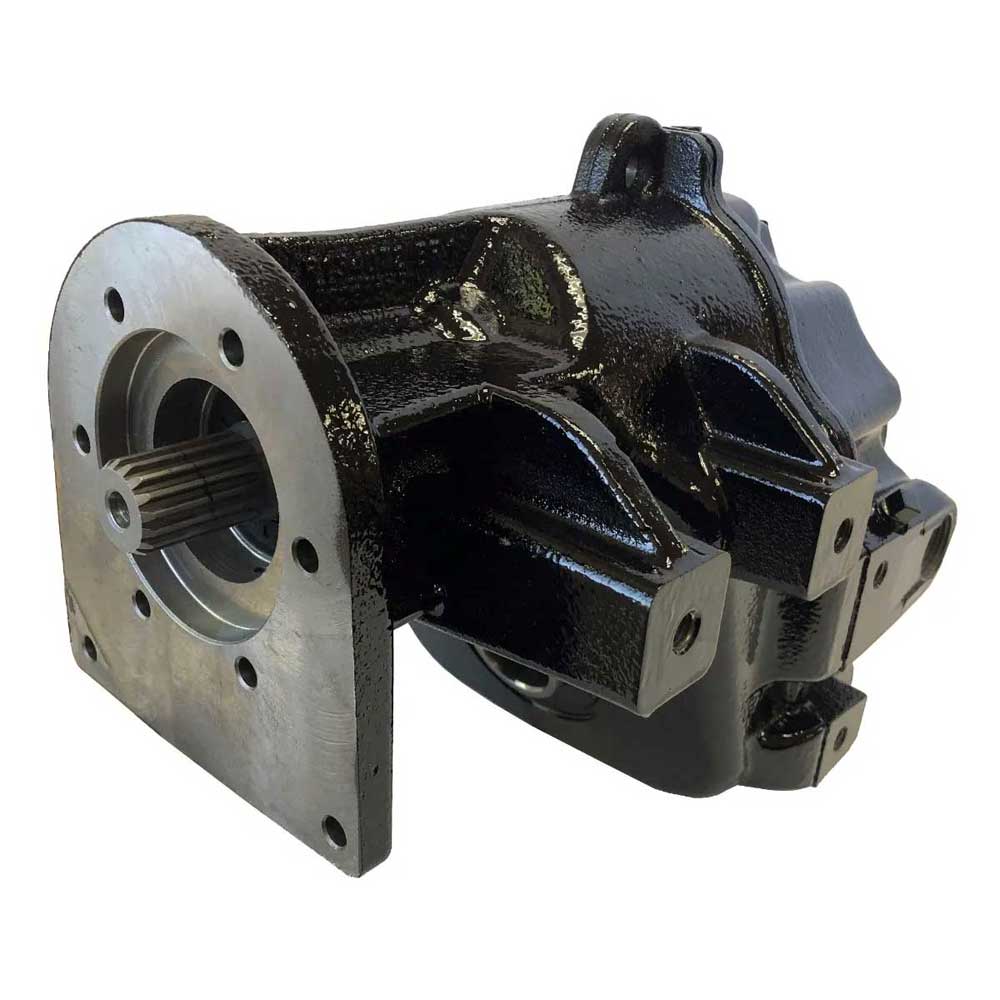

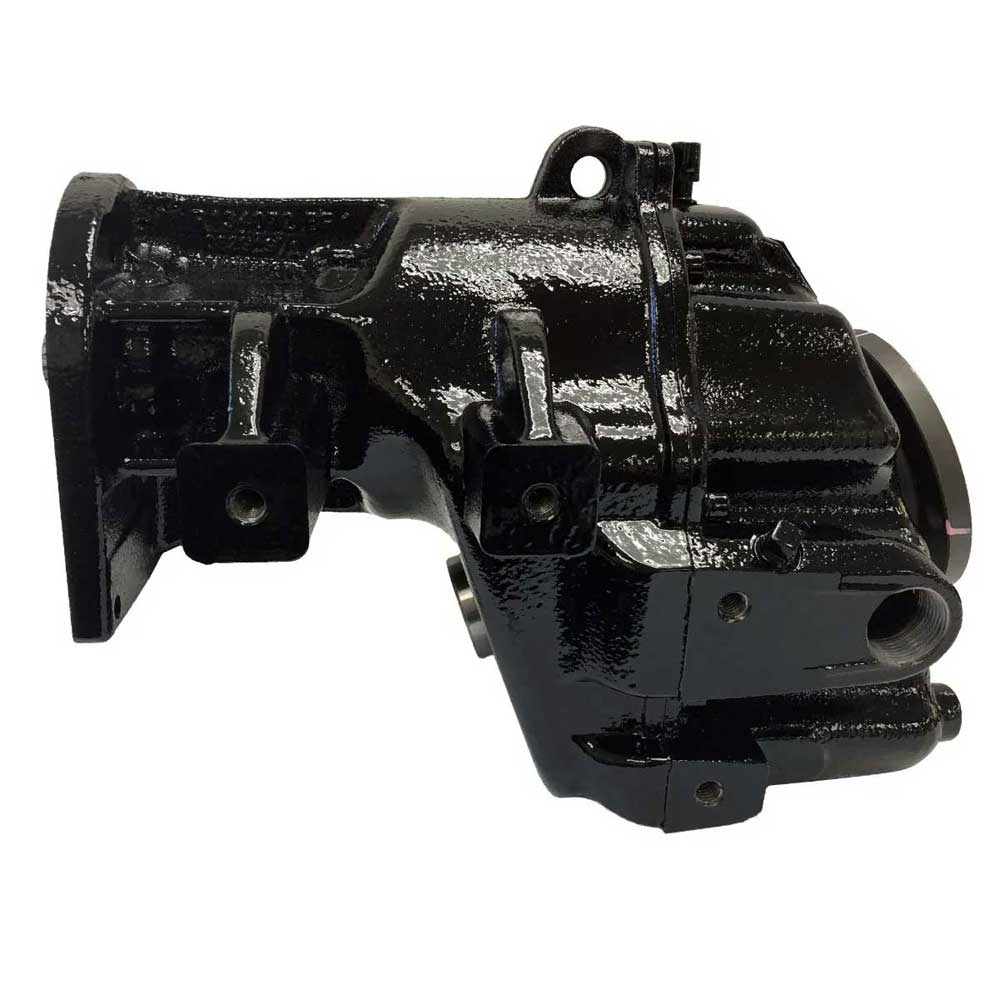

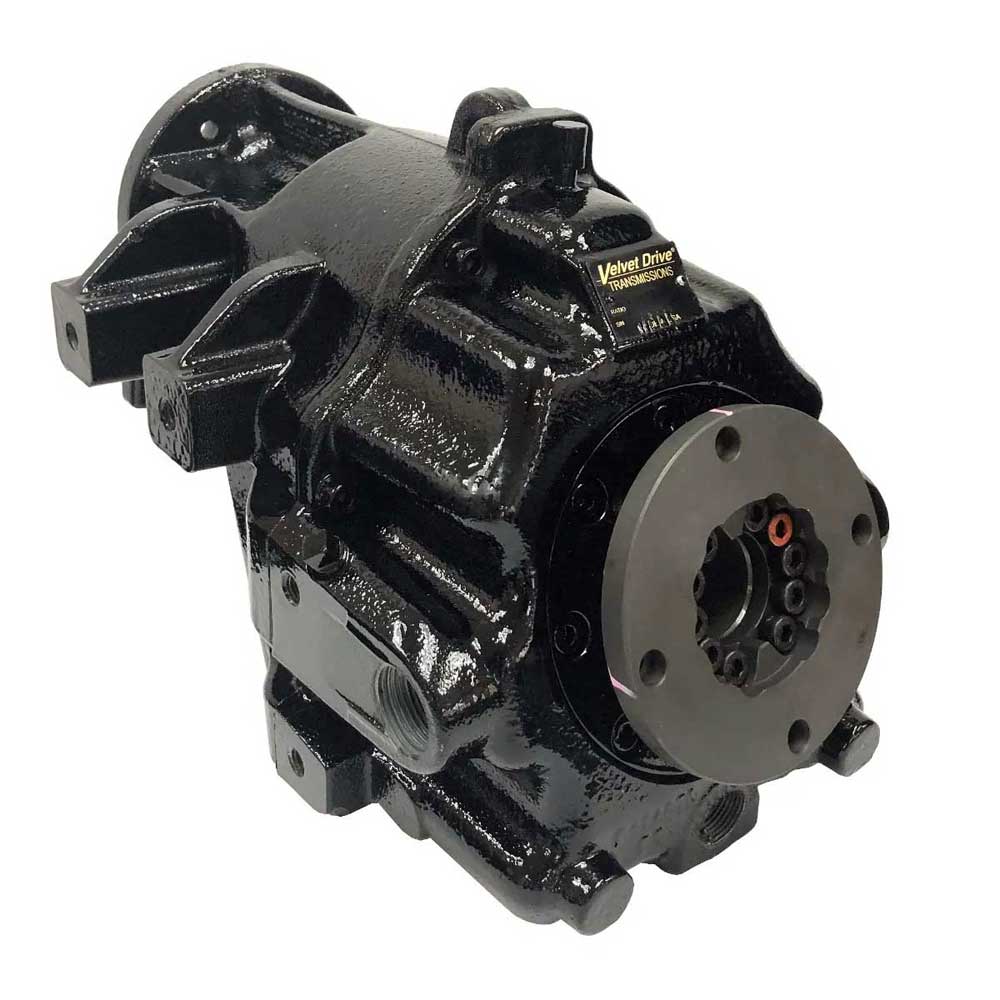

PowerPlus v-drive unit with green tag 1.72:1 gear ratio used in combination with the PCM 80S transmission in towboat engine applications.

• PCM Power Plus V-drive Assembly 1.72:1 gear ratio
• Uses approximately 1-1/2 quarts of PowerPlus 50W V-Drive lubricant R193003A-1 - CLICK HERE
• Replaces earlier PCM model RA156013 and may require mount along with linkage change in certain boats
• Early design v-drive requires a mounting change see the product attachment tab for details
• Contact us for further detail when replacement of RA156013 is required




  2007 and up Pleasurecraft Marine Power Plus V-drive.

  This V Drive does NOT include transmission

  The V-drive mounting bosses were changed in September 2015

  Note that Nautique & Tige replacement units prior to 2015 will need x 2  of R062098B Spacers and  x1 of R0904004

  On the Malibu & Axis boats, they need x 2 of R062098B spacers
   x 2 of Mounts R090439 -  x 1 R090454 bracket and x 1 R090400A bracket

  Note that Axis boats also need R090439 mounts

  Centurion & Supreme will need x 2 R062098B spacers and x 1 Shift linkage bracket R090400A and x 1 R090454 Bracket

  Please e-mail us or call to make sure you are ordering the correct parts. Thanks much!

NOTE: No returns on this item unless defective or damaged. Special Order Item. ETA is 7-12 days to ship.
