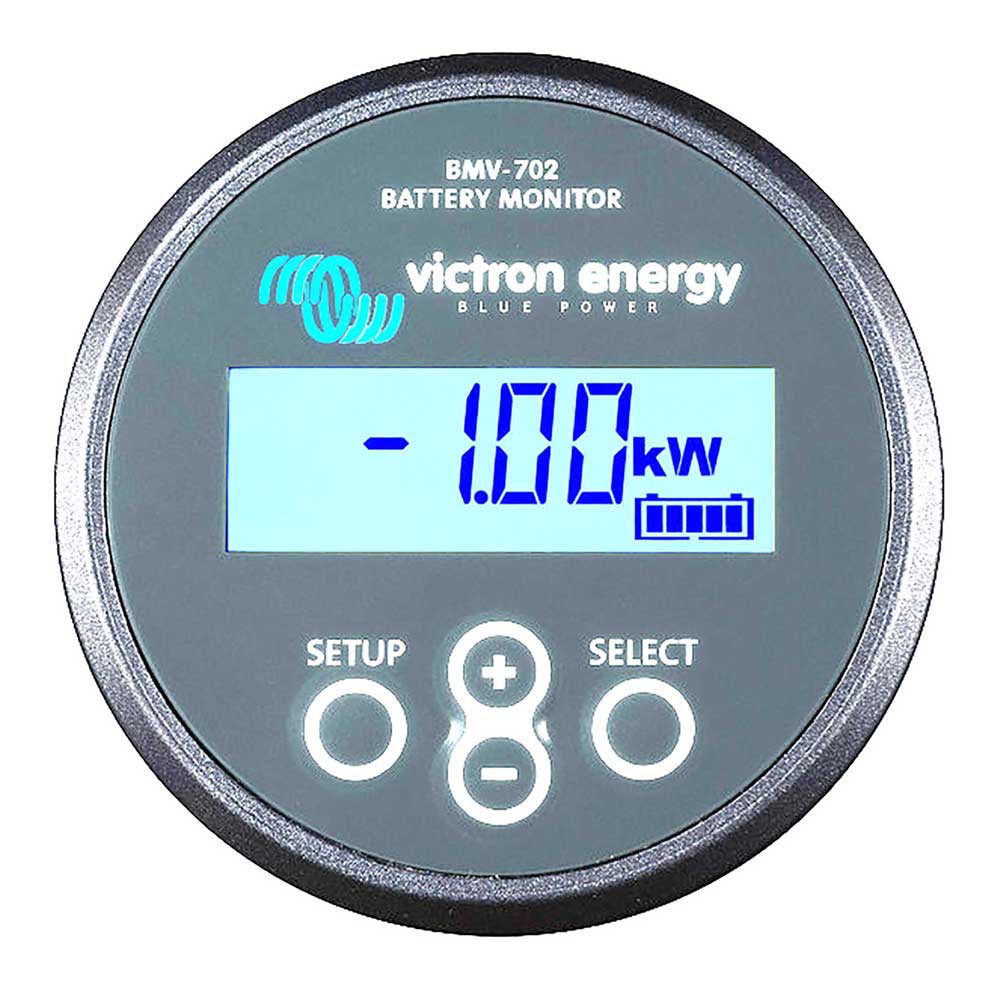

• Battery voltage, current, power, ampere-hours consumed and state of charge
• Time to go at the current rate of discharge
• Programmable visual and audible alarm
• Programmable relay, to turn off non critical loads or to run a generator when needed.

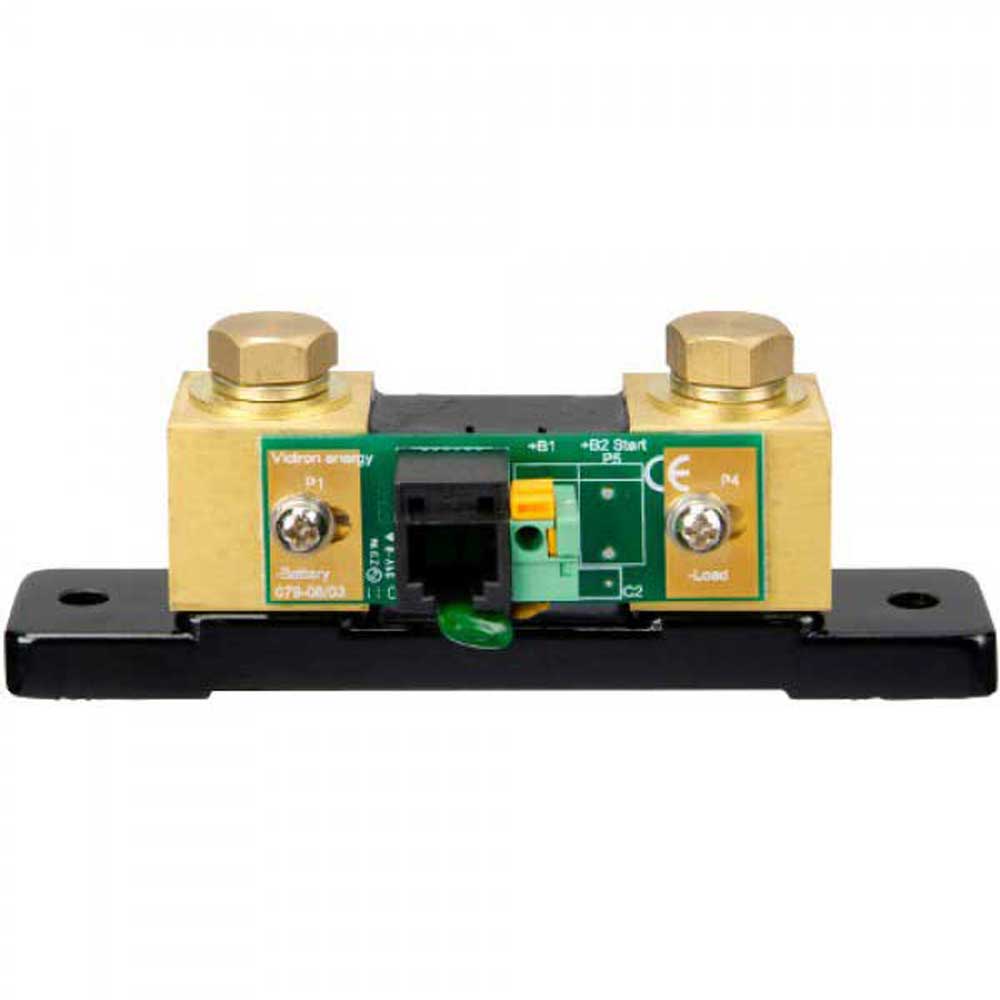

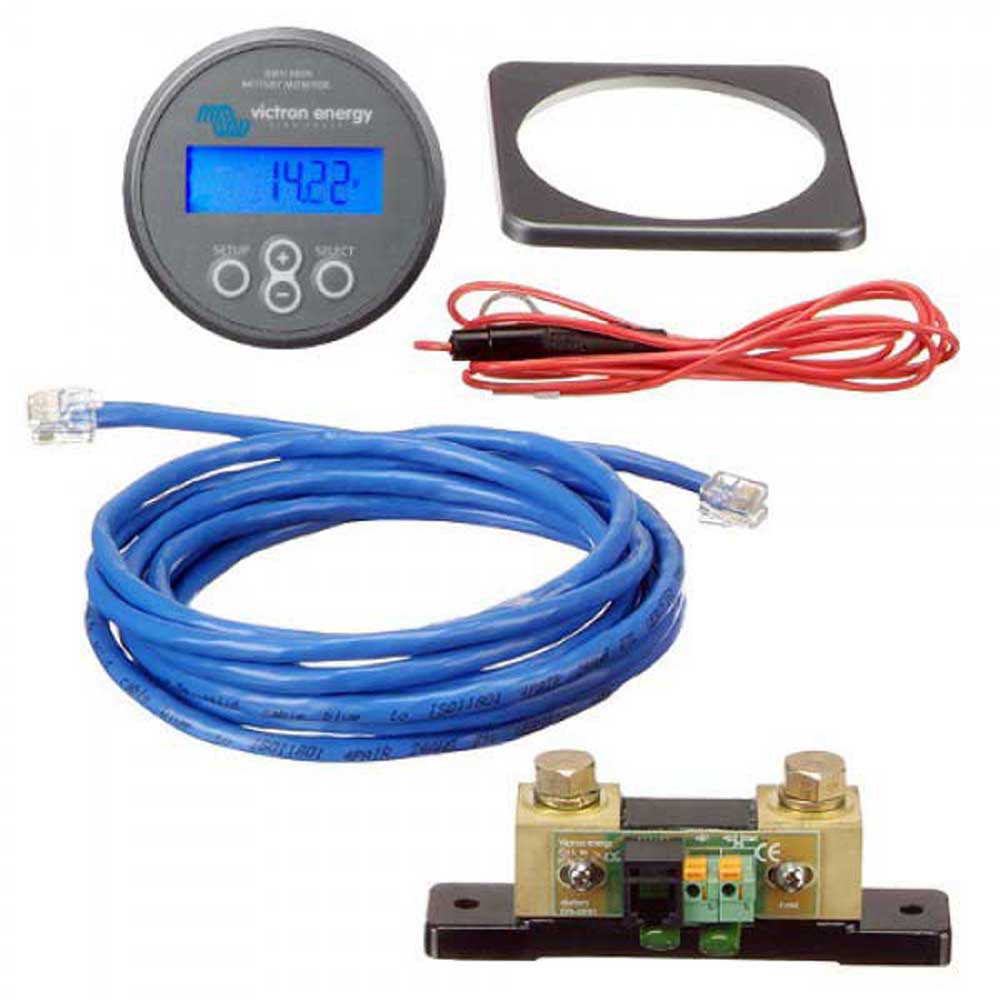

• 500 Amp quick connect shunt and connection kit
• Shunt selection capability up to 10.000 Amps
• VE.Direct communication port
• Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health
• Wide input voltage range: 9,5 ?? 95 V
• High current measurement resolution: 10 mA (0,01A)
• Low current consumption: 2,9 Ah per month (4 mA) @12V and 2,2 Ah per month (3mA) @ 24V

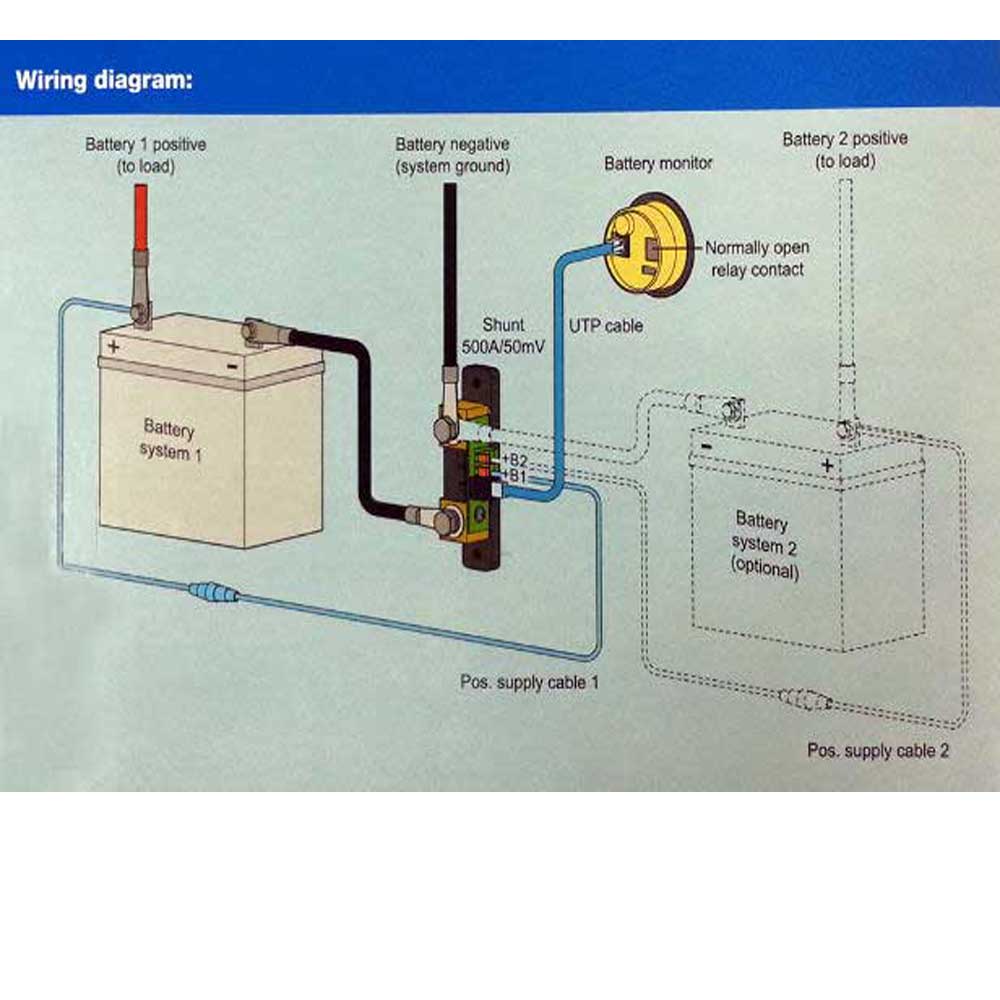

• An additional input which can be programmed to measure the voltage (of a second battery), temperature, or midpoint voltage
• Midpoint voltage monitoring (BMV-702 only) is often used in industry to monitor large and expensive battery banks, is now for the first time made available at a low cost, to monitor any battery bank. The midpoint voltage is the voltage halfway along a string of batteries. Ideally, the midpoint voltage would be exactly half of the total voltage. In practice, however,deviations will be seen, dependent on many factors such as a different state of charge for new batteries or cells, different temperatures, internal leakage currents, capacities and much more. Large or increasing deviation of the midpoint voltage, points to improper battery care or a failed battery or cell. Corrective action following a midpoint voltage alarm can prevent severe damage to an expensive battery.
• Replaces Victron BAM001004200, BAM010702000
