OEM Indmar Complete Full RE-PLUMB CONVERSION KIT FOR 5.7 EXT CAT

This kit changes the water flow through the 5.7L ETX CAT exhaust manifolds (re-routes the cooling system).

Fits V-Drive and inline applications.

Note that the Re-plumb kit must be used when replacing manifolds that have not used the Re-plumb kit.

• Kit for replumbing cooling system for engines with EXT Cat exhaust manifolds
• Used on engines with serial no. 172317 and lower

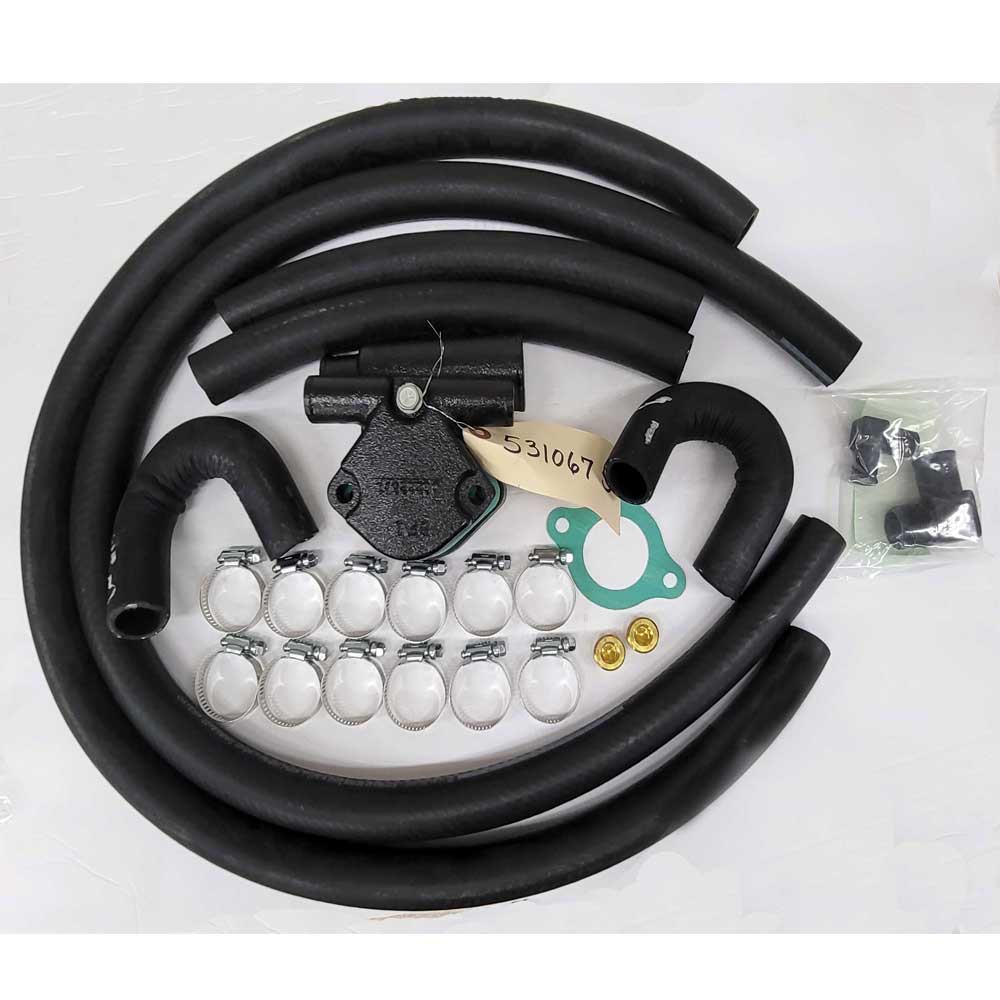

  • KIT CONTAINS THESE PARTS:
    • Re-Plumb Kit - 495180 X 1 All The Hoses
    • Thermostat Housing Complete - Low Profile x 1 - 53-1067S
    • Lower Thermostat Housing Gasket x 1 - 55-1004
    • All Stanless Steel Clamps x 12 Needed - RS3851
    • Pipe Plugs x 2 - 53-5034
    • Elbow Kit x 2 - 60-5084

If you only want the replumb kit | Hoses Only | CLICK HERE For OEM 49-5180

If you use the 2-piece housing its the same except the middle 2 ports on the diagram aren't there so those connections won't exist.

Also, in the replumb kit the 1" hose from the top of the manifolds to the exhaust dumps is long enough to go around the front of the manifolds and under them back to the dumps.

Use the 2-piece housing, remove the old 6 port and remove the 2 fittings in the intake and put in pipe plugs.

Remove the old thermostat from the intake (2 piece thermostat comes with the thermostat installed.)

1" hose from thermostat to the bottom fittings on the manifolds, top fittings on the manifolds will go under the manifold and up to the fittings on the stainless dumps.

CLICK HERE FOR PDF DIAGRAM!
