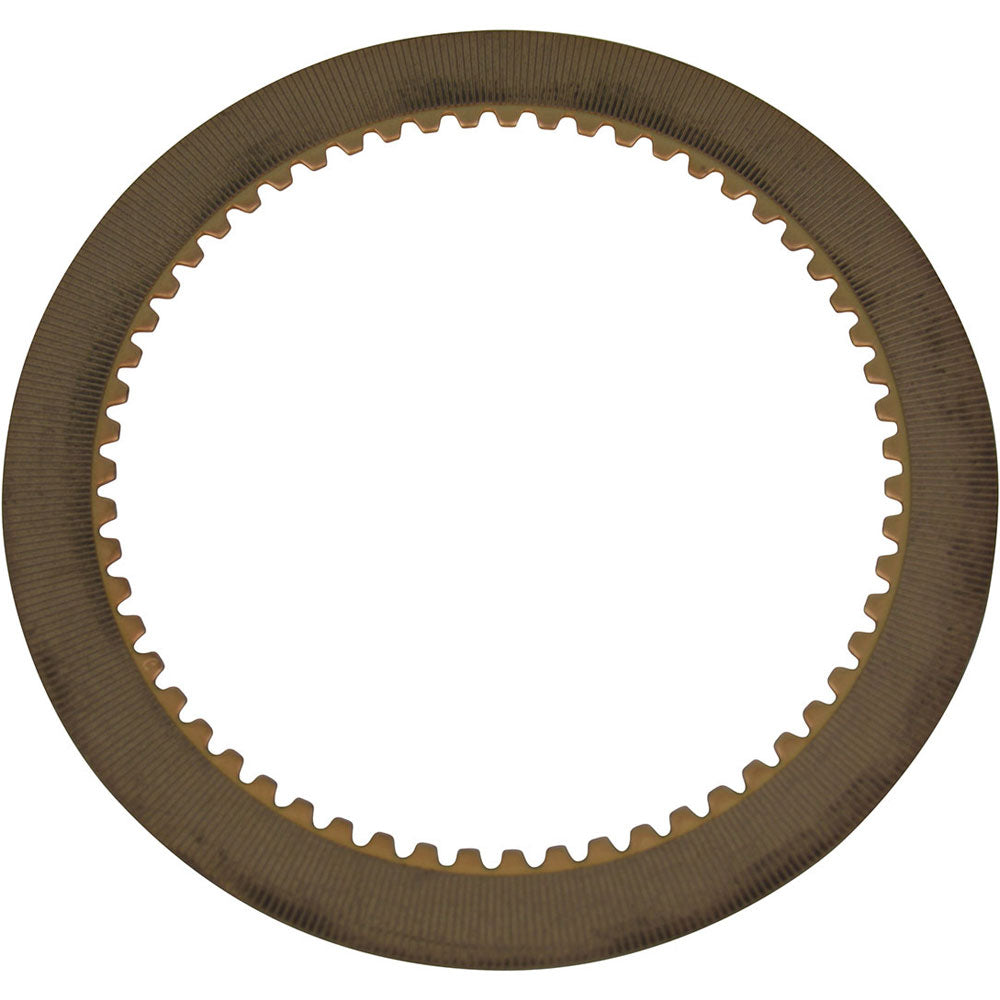

Inner Reverse Clutch Plate For Borg Warner Velvet Drive Transmissions
Friction / Pressure Plate
Clutch Plate, Inner Reverse
NOTE: 2 are required for most Warner Gear transmissions in Correct Craft boats. Exceptions are transmissions with tags stamped with “10-17–001” OR “10-17-002” – these only need one plate.
- Replaces Alto 023738BR
- Replaces Crusader 1006463
- Pleasurecraft Marine R160008
- Replaces Velvet Drive 72-A66B
- Replaces Volvo Penta 3858995
BORG WARNER TRANSMISSIONS, known for their smooth, Velvet Drive, have been the industry standard for decades. The 71-C and 72-C designations indicate input horsepower ranges.
Typically, a 71-C is found on small blocks and a 72-C is used on big block applications. The most popular model is the in-line unit. In-line indicates that the input and output shafts of the transmission are on the same axis. Direct Drive (1:1) versions of the in-line models are frequently used on high horsepower, lightweight boats.
The reduction ratio versions (1.5:1) use an additional planetary gear set to allow the use of larger propellers for greater pulling power at lower shaft speeds, often found on Mastercrafts.
