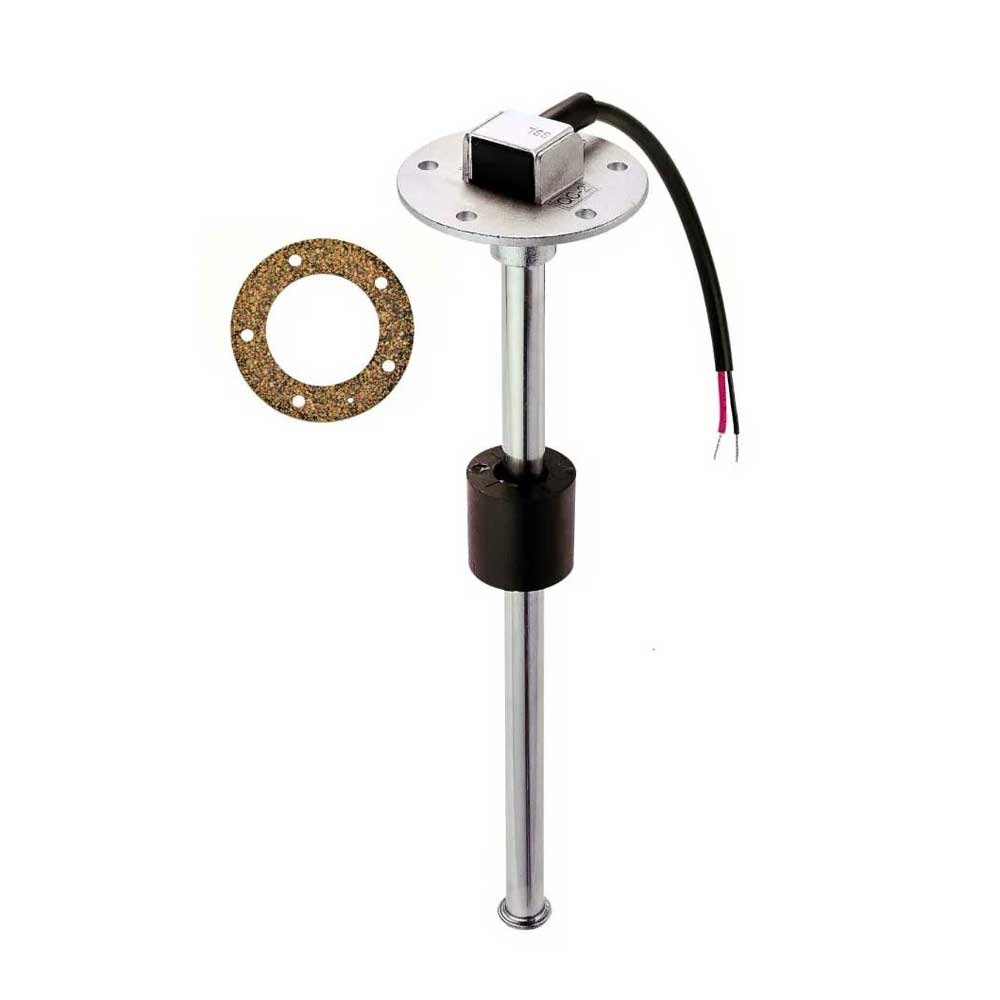

8.5" Fuel Tank Sender For 10" Tank Depth Single Station 316 Stainless KUS-151329
$68.00
8.5" Length for use in a 10" Tank Depth

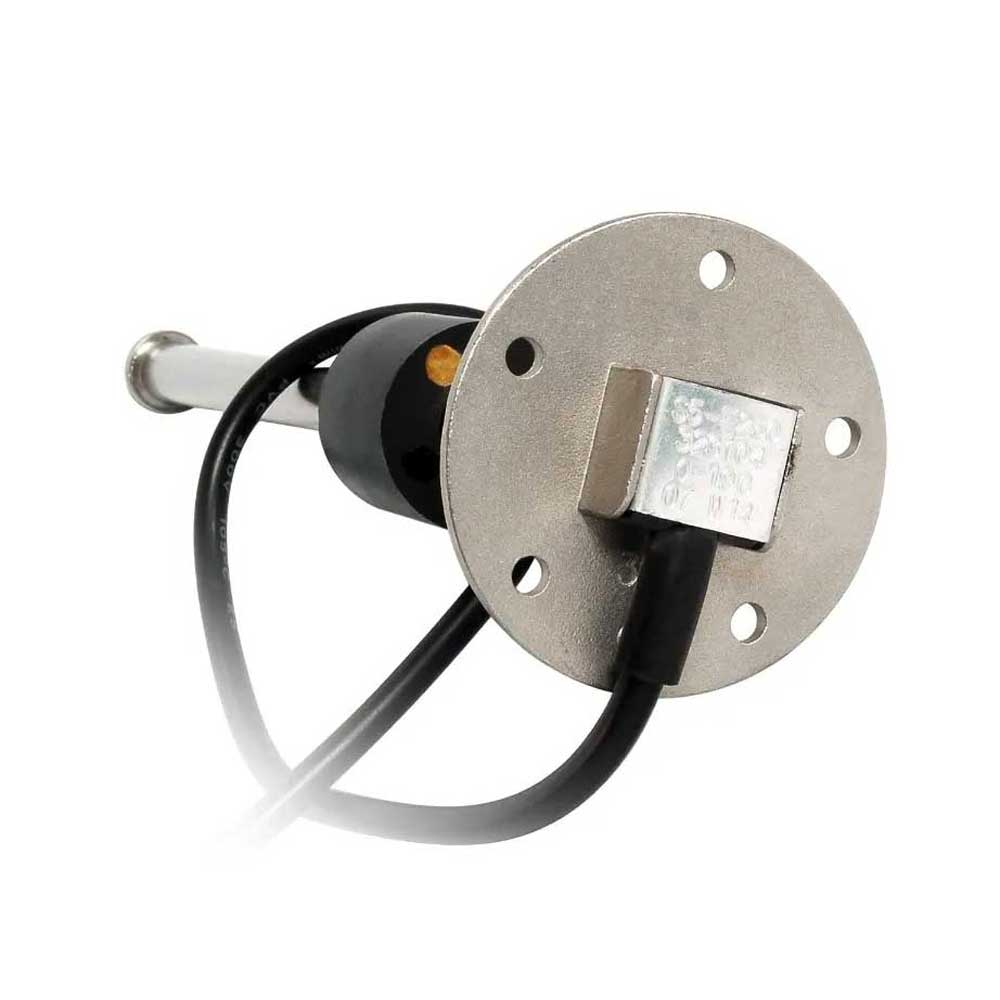

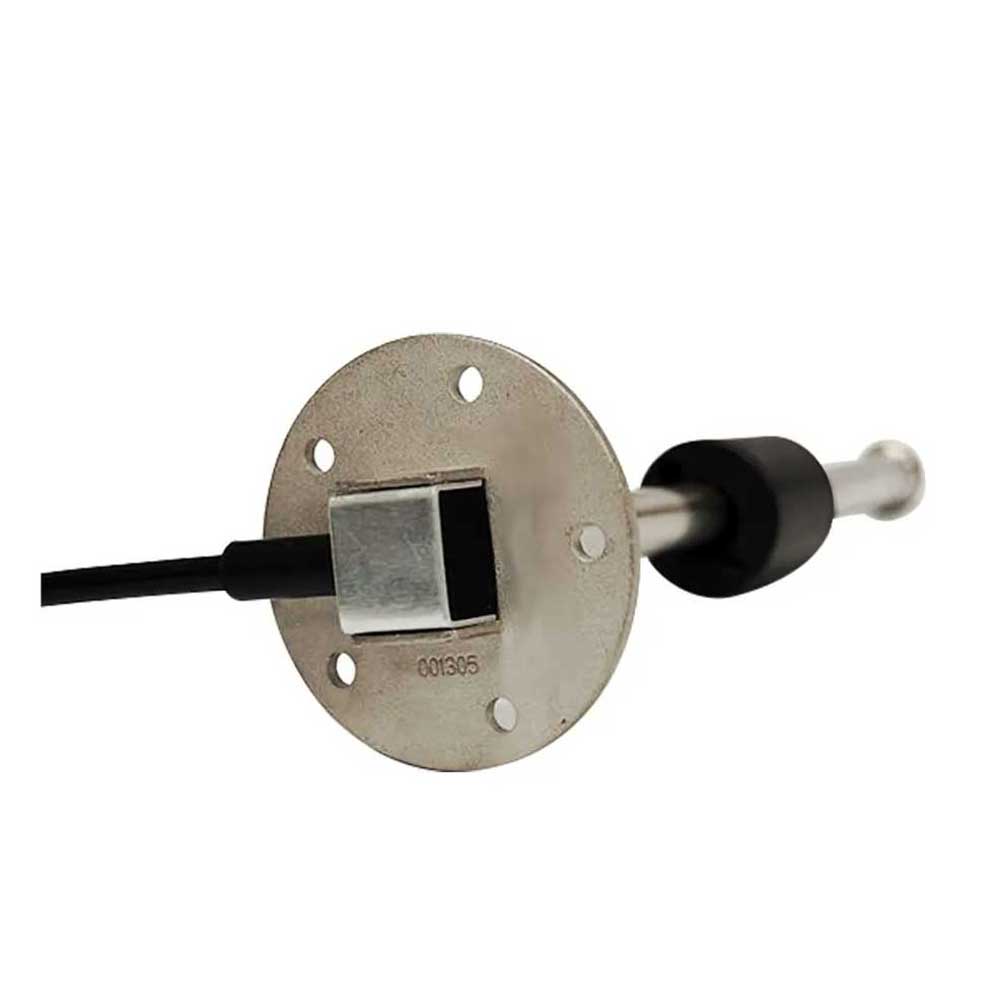

8.5 inch Stainless Steel Single Station Reed Fuel Sender

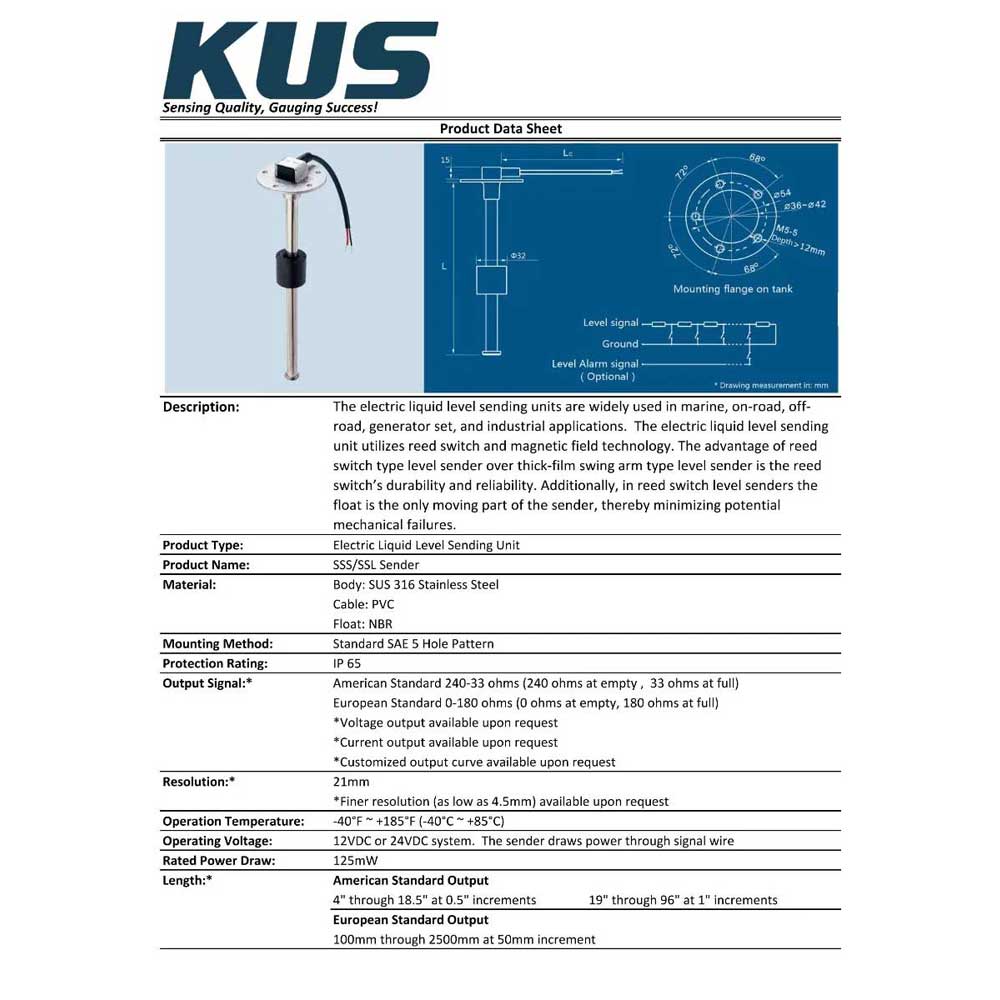

These electric liquid level senders use durable reed switch and magnetic field technology, offering greater reliability than swing-arm types. With only the float as a moving part, they reduce the risk of mechanical failure. Ideal for marine, vehicle, generator, and industrial use.
Body material: SUS 316 Stainless Steel
Cable material: PVC
Float material: NBR
Standard SAE 5-hole mounting pattern
Output signal: American Standard 240-33 ohms (240 ohms at empty, 33 ohms at full)
33 ohm at 100%
67.5 ohm at 75%
105 ohm at 50%
142.5 ohm at 25%
240 ohm at 0%
IP65 rated
