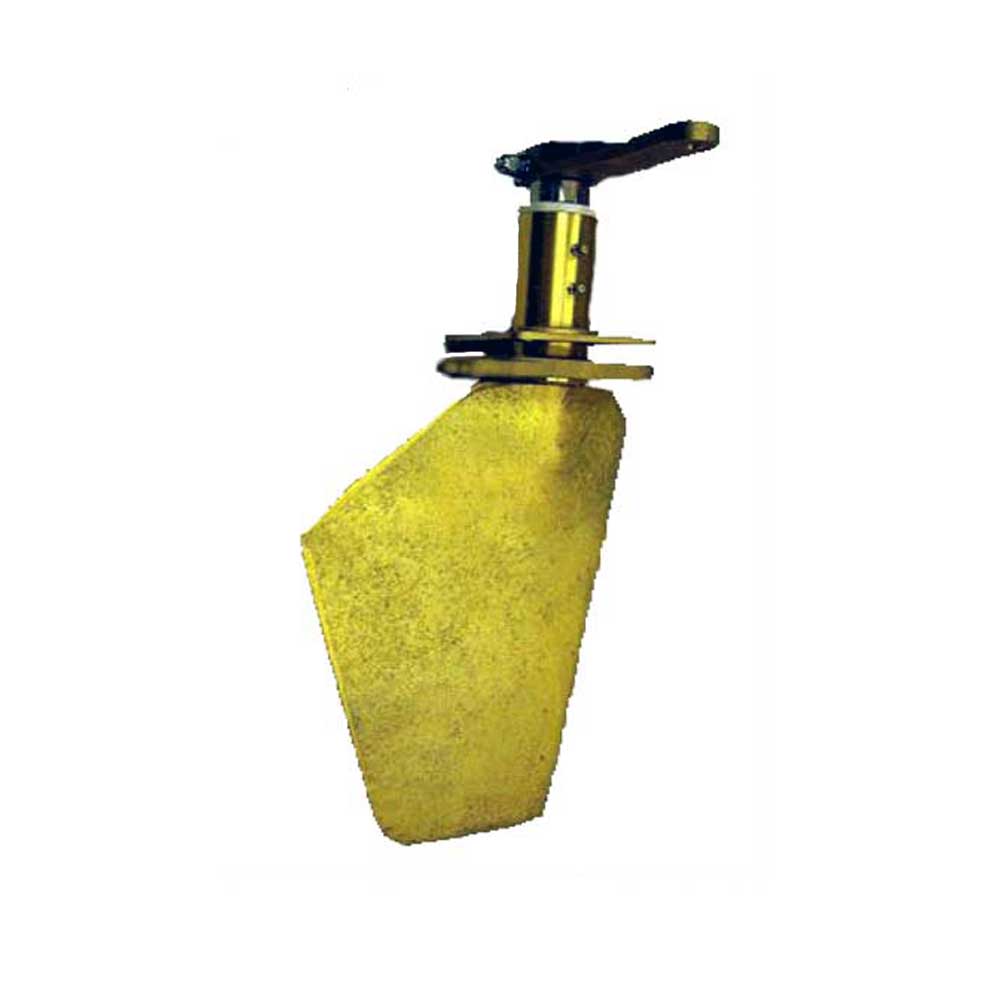

REPLACEMENT RUDDER ASSEMBLY FOR TOURNAMENT SKI BOATS

Marine Hardware rudders are cast and machined in the USA

The tiller arm is double keyed for left or right position

Rudder has a 4" X 4" square port

 This solid bronze, neutral steer rudder has slotted mounting holes in rudder box flange to allow universal fit in most existing hole-patterns on ski boats.

Has excellent performance and handling, lip seal, bore size is 2", slots fit a 3/8" fastener.

• Post 1.00" Diameter
• Blade
• Rudder Box W/Slot Mount Holes
• Lower Bushing
• Lip Seal
• O-Ring
• Retaining Ring
• Upper Bushing
• Grease Fitting
• Backing Plate, Slotted Holes
• Tiller Arm
• Bolt (Intersects Post)
• Flat Washer
• Lock Washer
• Nylon Insert Nut
• Set Screw
• Key
• Bolt
• Jam Nut

The bottom plate of the port measures 4" X 4" with slotted holes for ease of installation using the existing 4 bolt holes in boat.

Total post height is 5.75" and the actual rudder blade measures 12.75" for a total height of 18.5" top to bottom

7" long tiller arm that DROPS DOWN ABOUT AN INCH FROM THE CLAMP

The rudder port size is 2" and some older boats have a 1.5" hole that will have to be drilled out with a 2" hole saw. Easy to do.

This rudder will NOT work with most Correct Crafts.

MFG Description: RPTN Rudder Assy, Slot, Port / Strb, Drop TA
