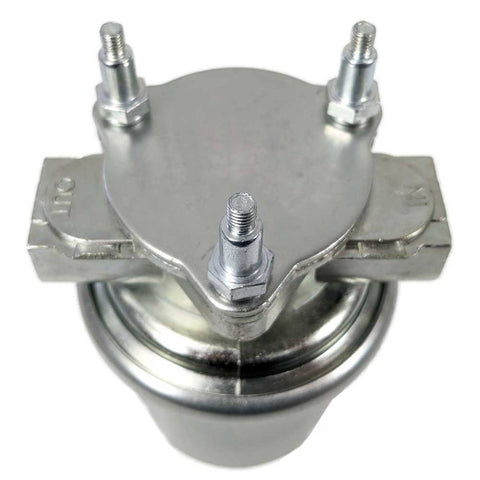

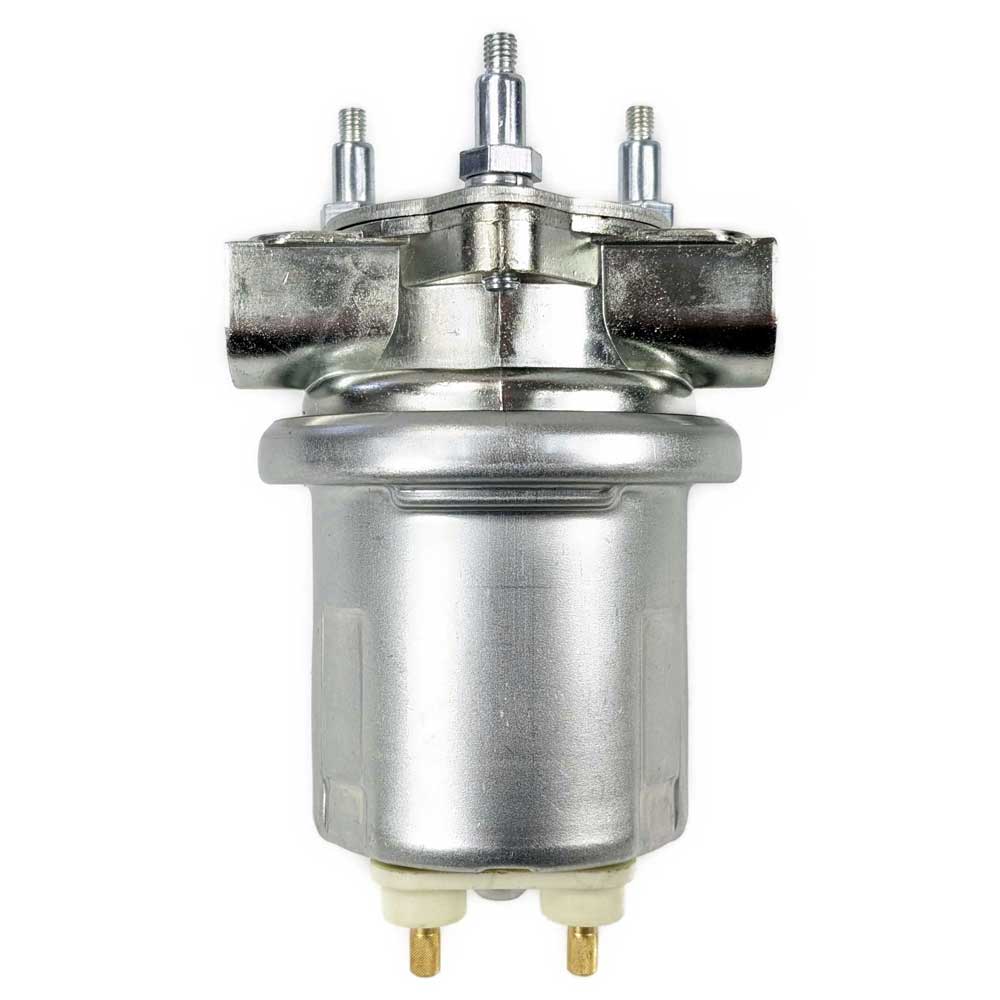

Low Pressure Electric Fuel Pump Indmar & PCM
Carbureted Indmar/PCM engines and PCM with Fuel Control Cell up to mid 2007 (feed)
- Harness with modular plug is integral to pump
- Does not include mounting bracket
- Original Crusader
- Replaces Pleasurecraft Marine RA080018
Replaces Indmar Part# 50-1006, S501006
Also used on 1995 GT40 with no FCC
This is the low-pressure supply pump used on PCM EFI engines that have a fuel control cell, and some late model carb motors.
This pump was used on carbureted engines to supply the carburetor and on FCC fuel systems up to 2007.
This is the low-pressure feed pump.
The electrical connector may be different from the old pump, cut off WIRES FROM the old pump and connect them to the 2 posts on the new pump to the 2 smooth wire posts under the green caps.
Move over the wires from the PCM pump to the 2 smooth metal posts on the Indmar pump to the two smooth metal posts under the green caps using an electrical nut.
